Understanding Foundation Reinforcement Design: What You Need to Know
A structurally sound foundation is the backbone of any building. When foundation issues arise, many homeowners and property managers rush to hire contractors without fully understanding the engineering process behind foundation reinforcement design. In this blog, we’ll explore foundation systems, common problems, and how structural engineers design reinforcement solutions tailored to your building.
1. Foundation and Footing:
Why It’s Crucial to Build Below Frost Depth
Not every foundation sits on a proper (or any) footing! Footing is a structural component that distributes the building’s weight onto the soil. The importance of the footing's role would differ depending on the structure type, soil condition, and underground water table elevation. Improper footing can cause major structural issues. In colder climates, footings must be placed below the frost depth to prevent movement due to soil expansion and contraction.
What is Frost Depth?
In regions with freezing temperatures, the ground expands when water in the soil turns into ice. Footings must extend below this depth to avoid seasonal movement, which can cause cracks and settlement.
If the footing isn’t deep enough, or if the soil conditions are weak, foundation movement and settlement can occur over time.
2. What Happens When a Footing is Insufficient or Missing?
A weak footing can lead to a range of structural problems, including:
Foundation cracks and water infiltration into the basement
Slanting floors
Diagonal cracks in walls
Sticking doors or windows
When these issues arise, foundation reinforcement design is often necessary. Some common reinforcement methods include:
Reinforcement Techniques:
Mass Concrete Underpinning – Excavating beneath the existing foundation and pouring new rebars and concrete in controlled schedules.
Pier and Beam Underpinning – Adding deep piers to transfer loads to stronger soil layers.
Micropiles and Helical Piers – Used when traditional underpinning isn’t feasible due to weak soils or the wall's failure condition.
Wall Bracing and Carbon Fiber Straps – Strengthening foundation walls that show bowing or cracking.
A structural engineer assesses the best reinforcement approach based on soil type, foundation condition, and load requirements.
3. Foundation Reinforcement Design Process
Foundation reinforcement isn’t a one-size-fits-all solution. It requires careful evaluation by a structural engineer before any work begins.
Step 1: Site Inspection & Wall Assessment
The engineer inspects foundation cracks, settlement patterns, and soil type.
Test pits are excavated by the contractor as per the engineer’s direction to determine footing depth and condition.
If severe foundation movement is detected, foundation reinforcement is planned.
Step 2: Foundation Reinforcement Design
Load calculations determine how much weight the foundation must support.
The reinforcement design considers:
Soil bearing capacity
Hydrostatic pressure & water table levels
Seismic and frost conditions (where applicable)
A step-by-step underpinning schedule is created to prevent structural instability during construction.
Step 3: Permits and Contractor Coordination
Engineers provide stamped drawings for permitting and construction.
A licensed, insured, and experienced contractor must follow engineering instructions carefully to avoid further damage.
4. The Underpinning & Construction Process
Once the engineering plan is approved, the actual reinforcement begins.

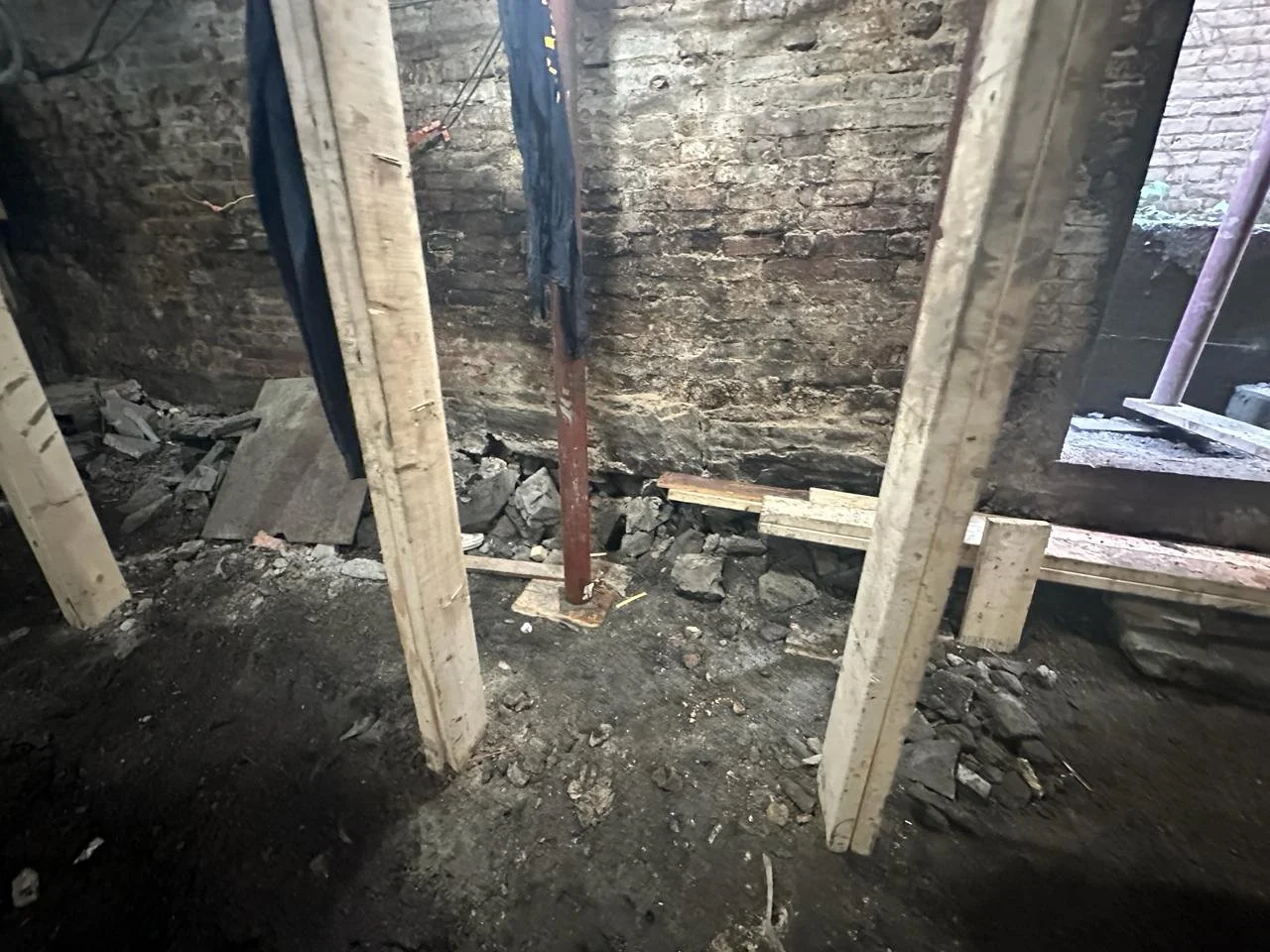

Excavation in Sections
The contractor digs under the foundation in small sections (based on the schedules provided by the engineer).
Each segment is supported before moving to the next to avoid sudden movement.
Placing Rebar & Pouring Concrete
Rebar cages or steel reinforcements are placed inside the underpinning pits.
High-strength concrete is poured in stages to avoid shrinkage cracks.
Curing & Structural Testing
Concrete must fully cure before supporting any loads and moving to the next schedule.
Engineers may conduct load testing or soil stabilization if needed.
Backfilling & Finalizing the Reinforcement
Any gaps are backfilled with compacted soil or engineered fill to ensure stability.
Final waterproofing may be added to protect against moisture intrusion.
Underpinned Foundation Beneath a Fieldstone Foundation
This image showcases an underpinned foundation beneath an existing fieldstone foundation, reinforcing the structural integrity of the building.
Foundation Underpinning and Drainage System Detail
Proper underpinning and drainage ensure long-term foundation stability and prevent structural issues caused by soil movement or water intrusion.
Examples of Foundation Issues and Reinforcement Solutions

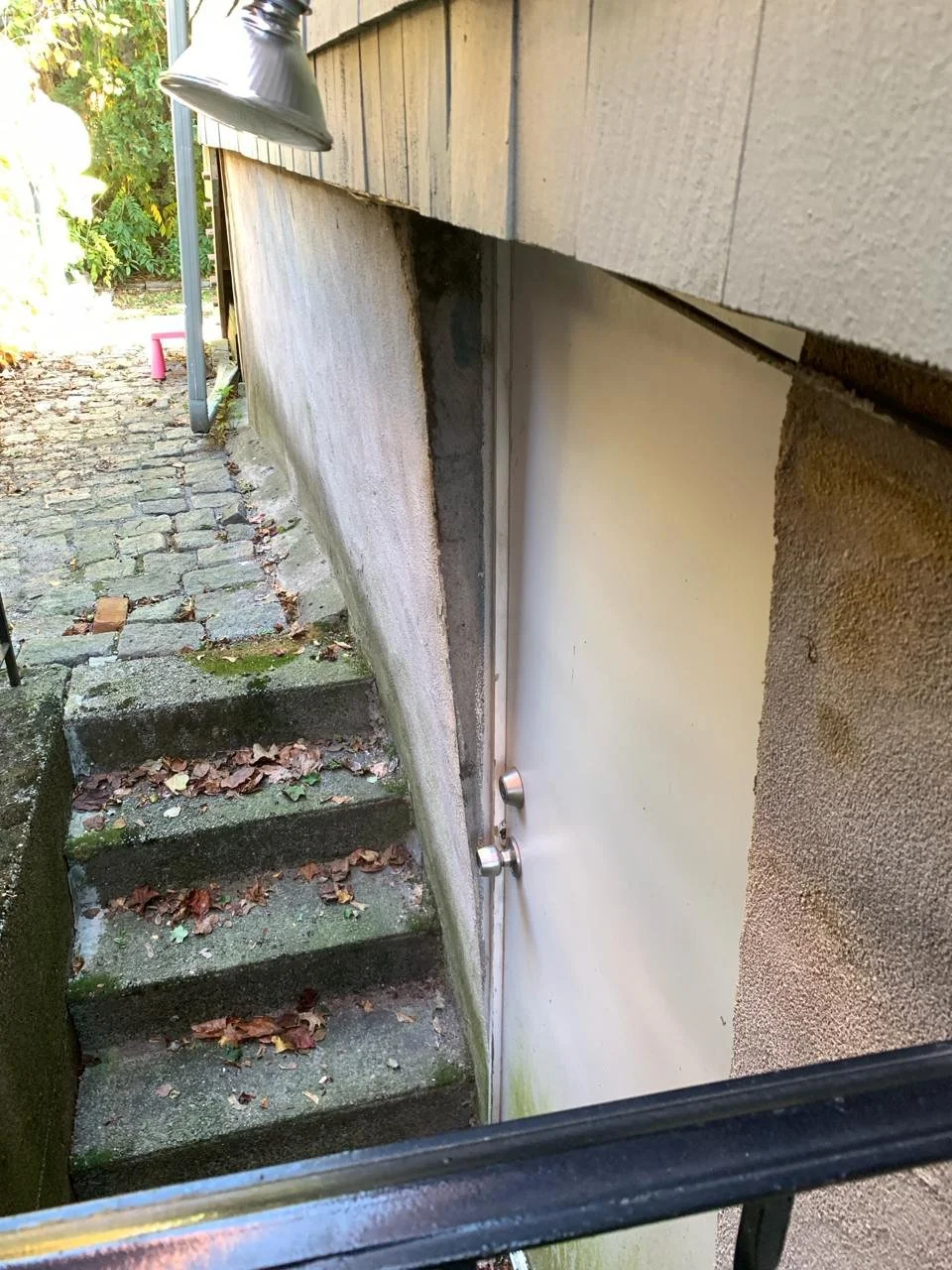

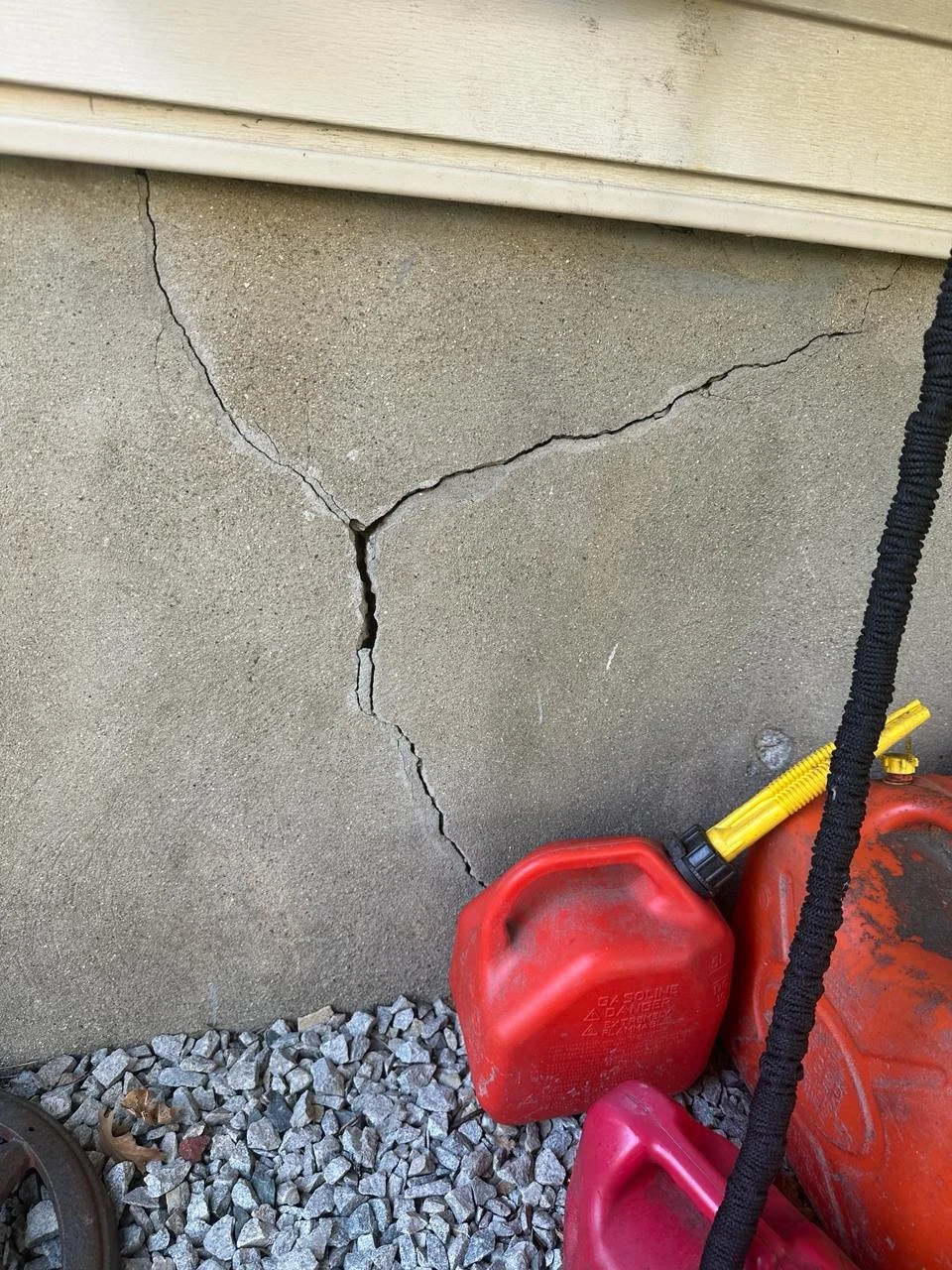

Understanding foundation reinforcement design is crucial for ensuring structural stability. Below, we showcase real-life foundation problems, including cracks, settlement issues, and failing foundation walls, along with the engineering solutions used to restore stability. These images highlight common foundation failures and the underpinning, helical pile installation, and other reinforcement methods used to secure structures for the long term.
Why Work with a Structural Engineer Instead of a Contractor Alone?
Many homeowners hire foundation contractors before consulting an engineer, leading to expensive band-aid solutions that don’t address the root problem.
🔹 Contractors build—Engineers design
🔹 A proper design ensures long-term stability
🔹 Prevents unnecessary costs from redoing faulty work
At SurfZone Engineering, we specialize in foundation reinforcement design to ensure safe and effective solutions for structural issues. If you're experiencing foundation problems, consult a licensed structural engineer before hiring a contractor.
